The data grid shows information about each route, including icons for the export status, the planned and actual start time, the assigned resources, and if a scheduling conflict is occurring.


Each line in the grid represents a route for the currently selected date and branch. The color of the line shows the current progress status:

  • Routes with a white background are unassigned and not logged in.

  • Routes with a blue background are routes that are preassigned and not logged in.

  • Routes with a green background are assigned and logged in.

  • Routes with a grey background are assigned and logged off.

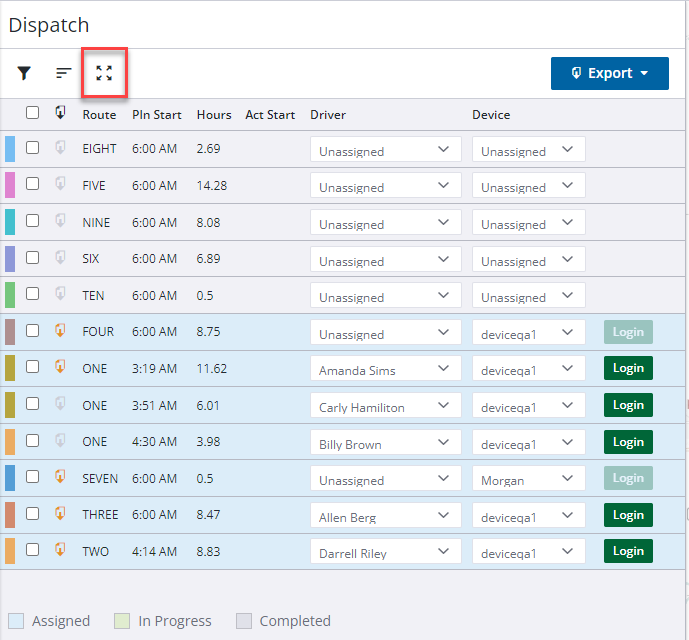

The data grid can be expanded or collapsed using the expand icon at the top of the grid.

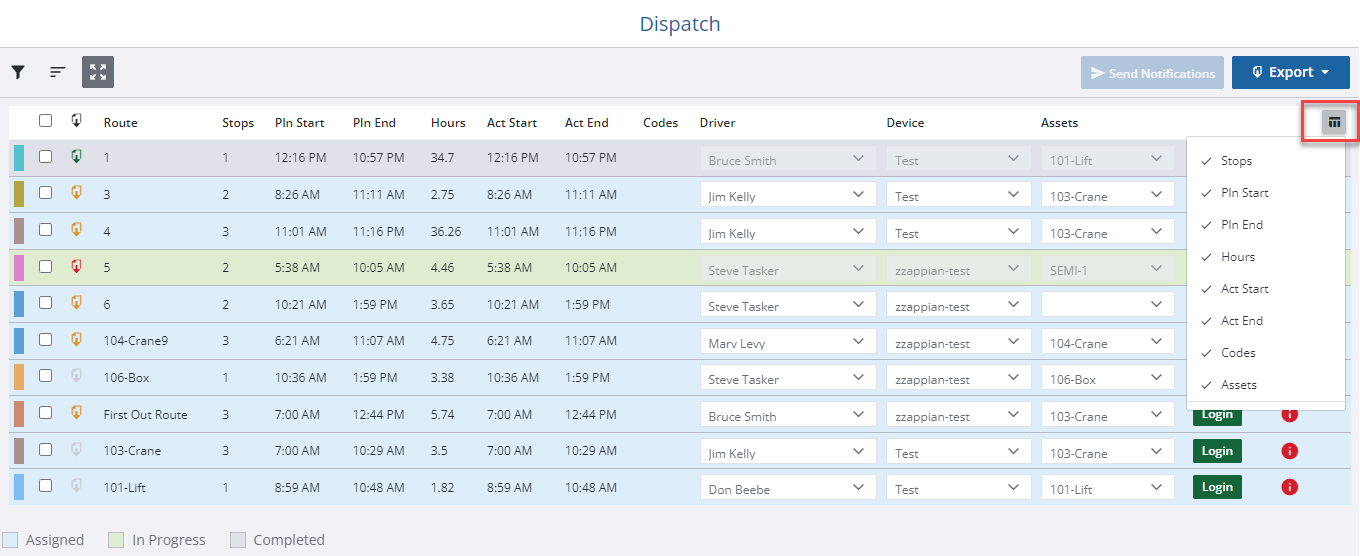

To rearrange the columns, drag the header left or right to the desired locations to configure the columns to display or hide different elements.

C:\Users\rmunda\AppData\Local\Microsoft\Windows\INetCache\Content.MSO\AF3DCA16.tmp


To reorder the columns, drag the header to the desired position.

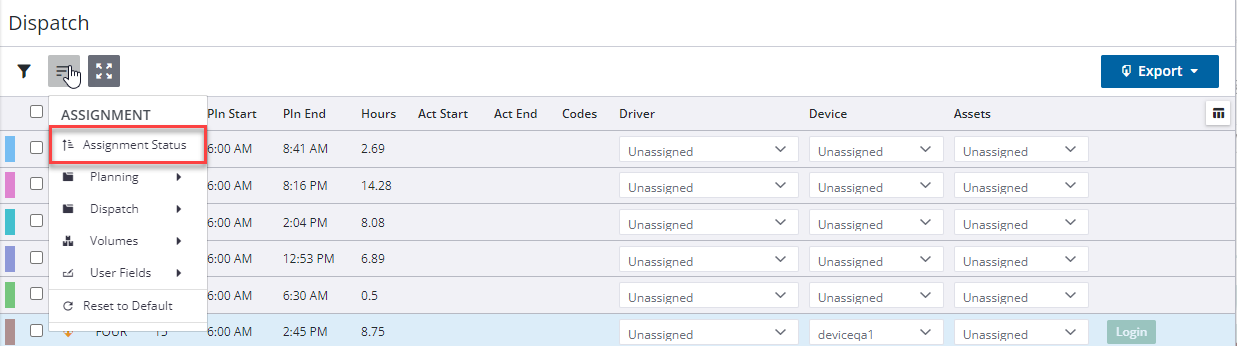

The data grid can be sorted very similarly to the unloaded orders or routes, but a new sort type of assignment status is available. This sorts the list based on the progress of a route. Unassigned routes are sorted to the top, preassigned but not started next, followed by in-progress and completed routes.



The data grid can also be filtered very similarly to unloaded orders or routes. Common filters for dispatch activities have been created as saved filters. These include:

  • Unassigned

  • Preassigned Only

  • Logged In

  • Logged Off

  • Not Logged In


Filtering shows only the routes in the data grid that meet the filter criteria.



Assignment

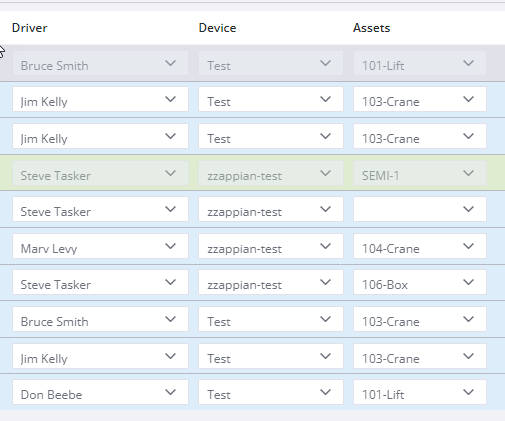

If driver, device, or asset assignment has not been done during the planning phase on the calendar, each can be preassigned from this page. To preassign, select the appropriate driver, device, or asset from each dropdown. The assignment occurs automatically. To change preassignment, select a new driver, device, or asset from the same dropdown.


C:\Users\rmunda\AppData\Local\Microsoft\Windows\INetCache\Content.MSO\C2B8C320.tmp


To unassign a route completely, select unassigned from the dropdown box in the appropriate resource. Alternatively, routes can be unassigned by right-clicking on a route line and clicking Unassign.

Once a route is logged in, the resource cannot be unassigned unless the login has been undone. Alternatively, routes that are preassigned, but not logged in can.


Reschedule Routes

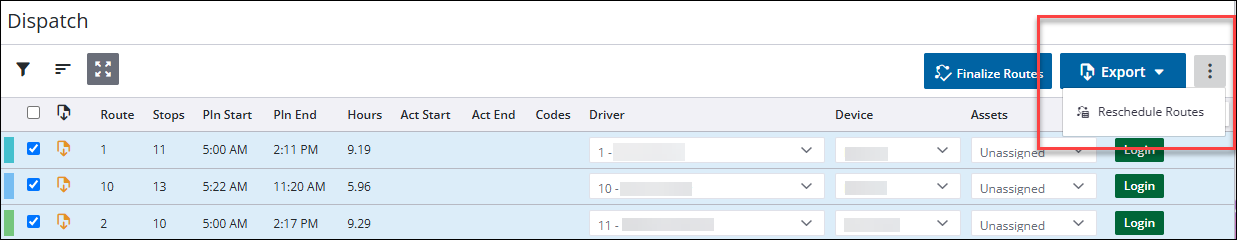

On the Dispatch dashboard, you can also reschedule a single route or multiple routes all at once. Check the box to select the route or routes you want to reschedule and then kebab menu > Reschedule Routes.



Exporting Routes

Depending on the telematics/mobile integration, exporting a route may be a requirement to get route plans to the drivers. Also, depending on the integration, preassignment may be a required step before exporting routes.

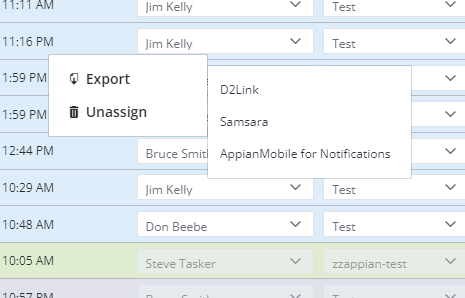

To export a single route, right-click on the route line and click Export. Depending on the integrations available, a list will appear allowing you to select which device type to export to.

C:\Users\rmunda\AppData\Local\Microsoft\Windows\INetCache\Content.MSO\8131B62E.tmp


To export multiple routes, check the box next to each route and click Export. The same dropdown with available integrations will be displayed allowing you to select the correct device types to export to.

C:\Users\rmunda\AppData\Local\Microsoft\Windows\INetCache\Content.MSO\2373326C.tmp


You can also re-export a route via the same process.


Export Status

Export status is displayed on the data grid via an icon to the left of the route number. The colors of the icon represent different export statuses that should be paid attention to. The status can also be understood by hovering over the export status icon.


C:\Users\rmunda\AppData\Local\Microsoft\Windows\INetCache\Content.MSO\88E47F5A.tmp Grey represents a route that has yet to be exported. It’s only grey if the route is unassigned.

C:\Users\rmunda\AppData\Local\Microsoft\Windows\INetCache\Content.MSO\6E65D078.tmp Orange represents a route that is preassigned but not exported.

C:\Users\rmunda\AppData\Local\Microsoft\Windows\INetCache\Content.MSO\DA7B2546.tmp Green represents a route that has been exported.

C:\Users\rmunda\AppData\Local\Microsoft\Windows\INetCache\Content.MSO\EE1A2944.tmp Red represents a route that has been previously exported and changed, so it needs to be reexported.
