The Route Planning Page allows you to build routes from unloaded orders. If routes have already been built, this displays the route cards. If you have no routes, this will be the default page, and you can begin building routes by clicking Build Routes.

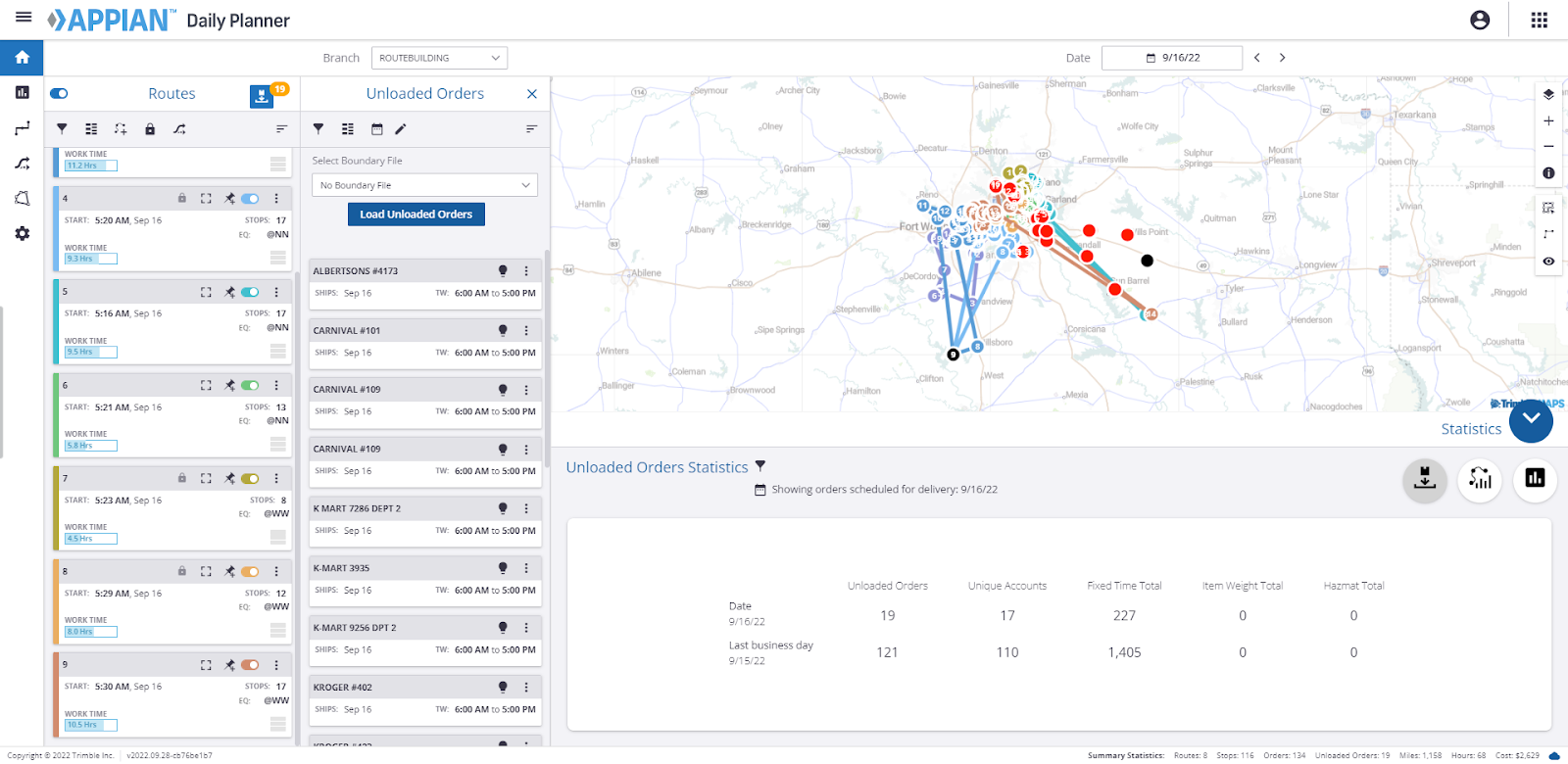

Appian Daily Planner main interface


  • Route Card List: If no routes exist, then this is where you will find the Build Routes button to start the Route Building Wizard workflow to build routes from the unloaded orders. If routes are already built, you will see the route cards listed.

  • Stops Card List: Once a route is built, you can pin a route by clicking the small pin icon in the header of the route card. A panel will open to the right of the route panel, showing the Stop cards list for that route selected. The stops will be shown in sequential order from top to bottom.

  • Unloaded Orders Cards: Displays the unloaded orders for the selected date and branch.

  • Map Panel: Upper panel that displays unloaded orders and routes for the selected date and branch.

  • Statistics Panel: Provides Unloaded Order Statistics, Route Comparison, and Daily Solution statistics with the ability to compare daily solutions.
