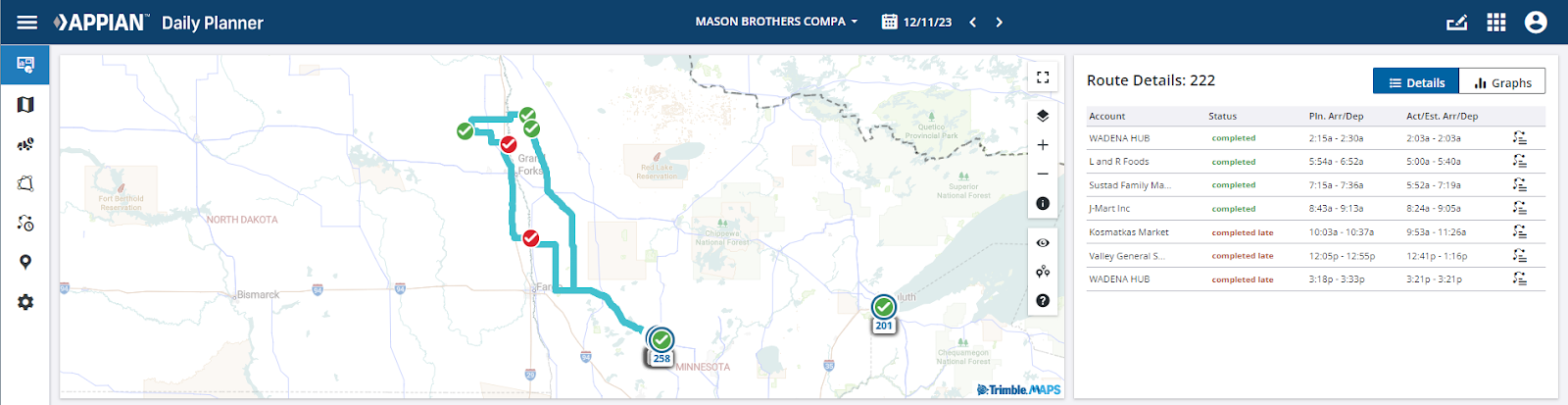

Clicking a device icon zooms the map and the single route progress is displayed on it.

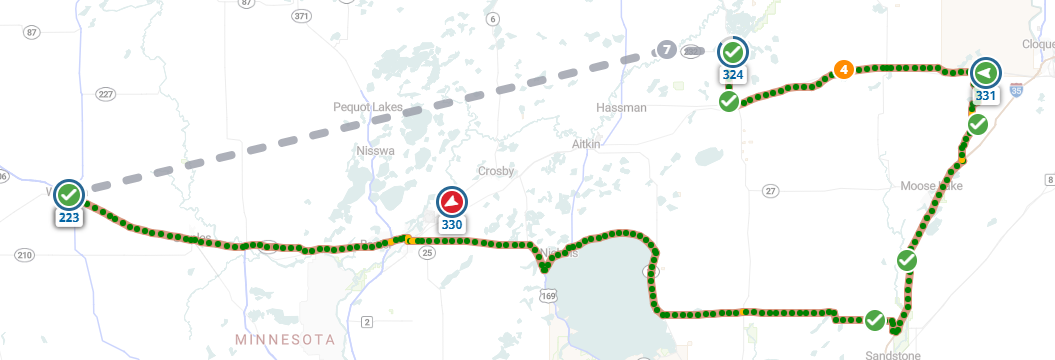

Each circle represents a stop on the route. The color and shape inside of that circle represent the current status. Red indicates the stop is either delivered late or the ETA is late; green indicates the stop is early/on time or is tracking early or on time. A checkmark indicates the stop is complete. Circles with the stop number indicate stops that have yet to be completed.


Hovering over a stop displays information about it, including the time window, the planned arrival time, and if available, the actual delivery time and estimated time. Clicking on the stop displays the Edit Route button, which returns you to the planning page.


The route line is colored in showing all of the completed segments. Incomplete segments are represented by a dashed line.



There are new map tools that can be used with the single route view. Selecting this icon allows you to toggle on or off fully completed routes, GPS breadcrumbs or other routes.


When completed routes are toggled off, routes that are fully completed are hidden from the map. When other routes are toggled off, then only the current route selected is displayed.

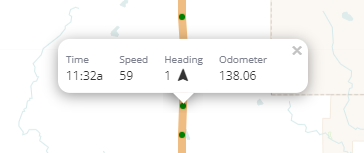

When GPS breadcrumbs are displayed, each GPS ping is represented in the route line by a green circle. Selecting one of these circles displays the time of the ping, the speed of the truck at that time of the ping, the header, and the odometer (If available in your GPS integration).

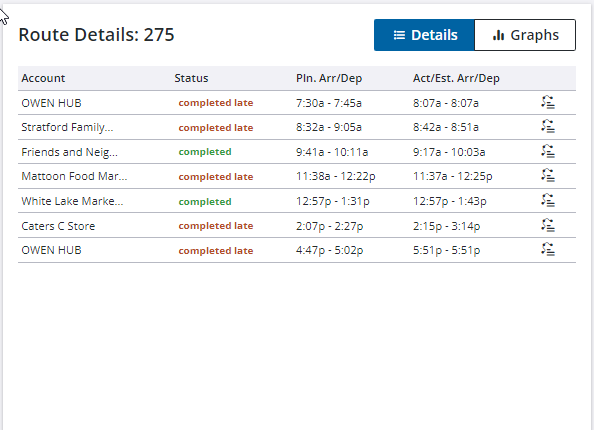

When selecting a single route, the graphs on the top right of the page are hidden in place of route details showing each stop, the status, the planned arrival departure, and the actual or estimated arrival time. Clicking Stop Details opens the DRTrack stop details page in a new browser tab. To bring the graphs back, select the Graphs icon at the top of the pane.
